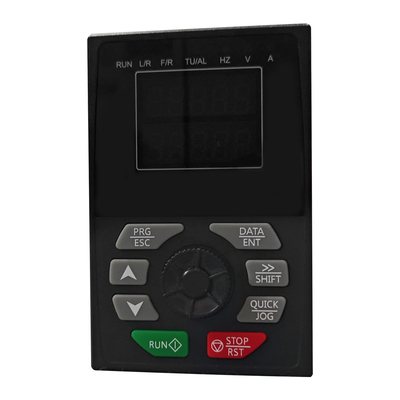

Variable Frequency Drive Display Touch Screen

Variable Frequency Drive Display Touch Screen

Payment Method: ,L/C,D/A,D/P,T/T,MoneyGram,Western Union
Detail Information
Product Description

Variable Frequency Drive Display Touch Screen

Frequency display is the core component of human-machine interaction in industrial automation systems, with functions covering multiple dimensions such as real-time monitoring, fault diagnosis, parameter adjustment, and system integration. Starting from technical principles, functional classifications, and typical application scenarios, systematically analyze its core functions.

1. Core Functions
1.1 Real-Time Monitoring
  • Electrical Parameters : Displays input/output voltage, current, frequency, power factor, and DC bus voltage (e.g., Mitsubishi FR-A740 supports switching between output frequency, current RMS, and DC bus voltage).
  • Mechanical Parameters : Shows motor speed, torque, line velocity, and load rate for precision motion control.
  • Status Indicators : Visualizes operational states (running, stopped, forward/reverse) via LEDs or icons (e.g., Siemens MM420 uses "RUN" and "FWD/REV" indicators).
1.2 Fault Diagnosis & Alerts
  • Fault Codes : Identifies overcurrent (OC), overvoltage (OE), undervoltage (LU), overheating (OH), phase loss (PF), and output short circuits (e.g., Yaskawa GA700 displays "OC" for overcurrent).
  • Event Logging : Records fault timestamps, types, and recovery actions (e.g., ABB ACS580 stores up to 8 recent faults).
  • Multi-Level Alarms : Triggers warnings (yellow LED) or critical alerts (red LED + shutdown) and sends notifications to remote systems.
1.3 Parameter Configuration
  • Frequency/Speed Control : Manually sets target frequency (0.01Hz precision) or uses PID for closed-loop control (e.g., constant pressure in water supply systems).
  • Protection Thresholds : Configures overcurrent (150-200% of rated current), overvoltage/undervoltage (±15% of nominal voltage), and thermal limits.
  • Control Modes : Supports V/F control (for fans/pumps), vector control (high-precision torque), and sensorless vector control (cost-effective).
1.4 System Integration
  • Local/Remote Control : Operates via panel buttons/touchscreen or communicates with PLCs/SCADA via RS-485 (Modbus RTU), Ethernet, or Profinet (e.g., Siemens S7-1200 integration).
  • Multi-Device Synchronization : Enables master-slave control for coordinated operations (e.g., paper machine drives) and energy regeneration (Danfoss VLT series).
  • Data Visualization : Plots trends (e.g., Schneider ATV312 shows 10-minute frequency curves) and exports historical data via USB/SD card.
2. Technical Specifications
2.1 Display Module
  • Screen Types : LCD (480*272 pixels), LED-backlit (high brightness), or capacitive/resistive touchscreens (premium models).
  • Interfaces : LVDS/HDMI for video, RS-485/Ethernet for communication.
2.2 Power & Environment
  • Voltage Range : 380VAC ±15% (3-phase) or 220VAC (single-phase), 47-63Hz input.
  • Control Power : +5V/+24V DC from switching power supply.
  • Operating Conditions : -10°C to 50°C (standard), IP20 (indoor) to IP67 (harsh environments).
2.3 EMC & Safety
  • Certifications : CCC (China), CE (EU), UL (USA) for electrical safety and EMC compliance.
  • Shielding : Metal enclosures, shielded cables, and EMI filters (IEC 61800-3).
3. Advanced Features
3.1 User Interaction
  • Touchscreen : Multi-touch gestures (zoom/swipe) and customizable layouts (Siemens Smart Line).
  • Multilingual Support : 10+ languages (e.g., ABB ACS880).
  • Access Control : Multi-level passwords and audit logs (Fuji FRENIC-Mini).
3.2 Communication & Expansion
  • Protocols : Modbus RTU/TCP, Profinet, Ethernet/IP, CANopen, OPC UA.
  • I/O Expansion : Digital/analog modules, encoder feedback (servo applications).
  • Firmware Updates : USB/SD card upgrades (Danfoss FC-300).
4. Application Scenarios
4.1 Fan/Pump Control
  • Energy Savings : Adjusts speed based on load (30-50% energy reduction).
  • Constant Pressure : PID control with pressure sensors.
4.2 Conveyors & Winders
  • Speed Synchronization : Multi-VFD coordination (e.g., packaging lines).
  • Tension Control : Torque mode with encoder feedback.
4.3 High-Precision Systems
  • Servo-Level Accuracy : Vector control + encoder feedback (CNC spindles).
  • Dynamic Response : Optimized acceleration/deceleration (0.1-0.5s).
