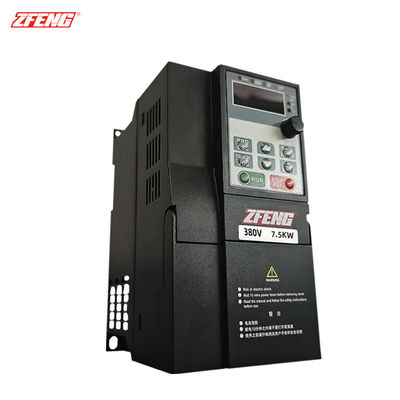

ZFeng 310 Series 7.5Kw-T-G General Vector Variable Frequency Drive

ZFeng 310 Series 7.5Kw-T-G General Vector Variable Frequency Drive

A vector drive is a type of power converter that uses vector control technology to manage the speed and torque of AC motors. Unlike traditional fixed-frequency drives or scalar-controlled drives, vector inverters utilize advanced mathematical models to decompose the motor's current into two orthogonal components: the excitation current and the torque current. This decomposition allows for independent control of the magnetic flux and torque, resulting in superior control performance.

The core principle of vector control involves transforming the three-phase AC current into a rotating reference frame (dq frame) that aligns with the motor's rotor flux. By regulating the dq-axis currents, the inverter can achieve precise control over the motor's speed, torque, and position, even under varying load conditions.

Key Features and Technical Advantages

• High Precision Control: Vector control enables accurate speed and torque regulation, with typical speed control accuracy reaching ±0.1% and torque response within milliseconds.
• Wide Speed Range: Supports smooth operation from zero speed to maximum rated speed, eliminating the need for additional sensors or encoders in many applications.
• Enhanced Torque Performance: Provides full torque at zero speed and superior torque response during acceleration and deceleration, making it ideal for applications requiring high starting torque.
• Energy Efficiency: Advanced algorithms optimize power consumption, reducing energy waste and operational costs.
• Adaptive Control: Many vector inverters feature adaptive control capabilities that automatically adjust parameters based on motor characteristics and load conditions, simplifying setup and ensuring optimal performance.
• Communication Interfaces: Often equipped with RS-485, Ethernet, or other communication interfaces for integration with industrial networks and remote monitoring.

Importance in Modern Industry

Vector inverters play a crucial role in modern industrial automation by:

• Improving Production Efficiency: Enabling faster and more accurate control of motor-driven equipment, reducing cycle times and increasing throughput.
• Enhancing Product Quality: Providing consistent speed and torque control, leading to improved product consistency and reduced defects.
• Reducing Energy Consumption: Optimizing motor operation and reducing energy waste, contributing to lower operational costs and environmental benefits.
• Increasing System Flexibility: Supporting a wide range of motor types and applications, simplifying system design and integration.
